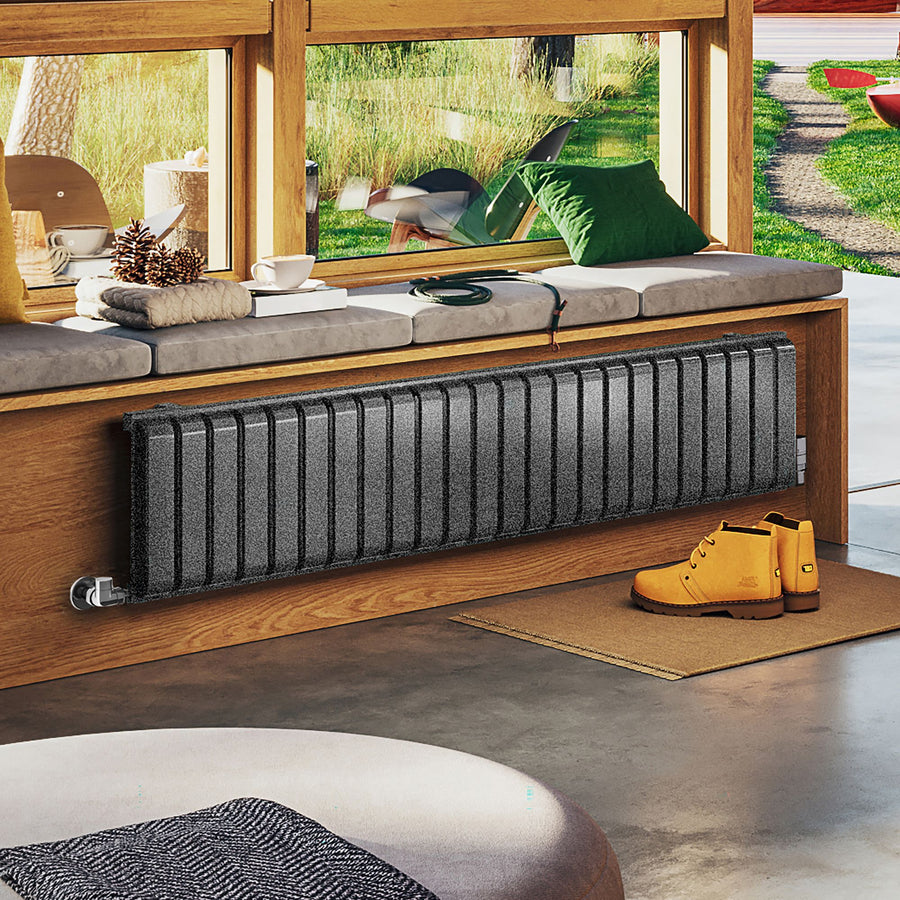

Terma Warp Room Horizontal Designer Radiator
The Terma Warp Room Horizontal is a central heating designer radiator with gently curved front bars and a flat rear layer. Four sizes are listed in Soft 9016 (Matt White), RAL 5018 (Matt) Teal and Salt n Pepper. RAL 6028 (Matt) Green is listed only at 330 × 1565 mm. The stated wall-to-face depth is 100 mm.
Please Be Advised: Terma are currently experiencing low levels of stock and lengthy re-stocking periods. We recommend all customers contact our sales line for instant stock levels to avoid disappointment and unforeseen delays – call 01257 452 879 to check Terma stock!
The Terma Warp Room Horizontal Designer Radiator combines a gently curved front layer of bars with a flat rear layer suspended between two uprights. This double-layered central heating design gives the radiator a shaped front and a broad visible surface for the chosen colour. The horizontal range includes a low 330 mm-high format and three 630 mm-high formats.
- Construction: Double-layered design with curved front bars and a flat rear layer
- Sizes: 330 × 1565 mm, 630 × 785 mm, 630 × 1045 mm and 630 × 1305 mm (height × width)
- Finishes: Soft 9016 (Matt White), RAL 5018 (Matt) Teal, Salt n Pepper and RAL 6028 (Matt) Green (Green available only in 330 × 1565 mm)
- Wall-to-Face Depth: 100 mm
- Wall-to-Pipe-Centre: 65 mm
- Fuel: Central Heating
- Heating Output: 2960 to 4931 BTU at T50 | 868 to 1446 W
- Warranty: 8 Year Warranty
- Delivery: 8 to 10 Weeks
- Valves: Not included
Efficiency
The Terma Warp Room Horizontal Designer Radiator provides central heating outputs from 2960 to 4931 BTU at T50, with watt outputs from 868 to 1446 W depending on the selected size. Compare the exact size's output with a heat-loss calculation for your room and the operating temperatures of your heating system.
Contact our sales office for further information: 01257 452 879
Installation
The listed wall-to-face depth is 100 mm, and the wall-to-pipe-centre measurement is 65 mm. The manufacturer describes side connections for the 630 mm-high models. Choose the valve arrangement from the selected size's installation drawing and the actual pipe route before installation. Soft 9016 (Matt White), RAL 5018 (Matt) Teal and Salt n Pepper are listed across all four sizes, while RAL 6028 (Matt) Green is available only in 330 × 1565 mm. White, teal and green have smooth matt finishes, while Salt n Pepper has a matt, rough texture. Valves are not included and must be purchased separately.
Check our Radiator Valve Guide for help choosing suitable valves.
Summary
The Terma Warp Room Horizontal Designer Radiator features a distinctive double-layered profile and a choice of finishes across four horizontal sizes. With central heating outputs suited to different room requirements, it comes with an 8 Year Warranty and an 8 to 10 Weeks delivery lead time.
Key Features
- Double-layered horizontal designer radiator
- Gently curved front bars and flat rear layer
- Central heating operation
- Four listed horizontal sizes
- 100 mm wall-to-face depth
- 65 mm wall-to-pipe-centre measurement
- Green finish listed only at 330 × 1565 mm
- Valves purchased separately
BTU, Watts and dimensions update live when you select a size above.
| Height | 330 mm |
| Width | 1565 mm |
| BTU Output (ΔT50) | 3317 |
| Watt Output (ΔT50) | 973 |
| Pipe Centres | 1565 plus valves mm |
| Overall Depth | 100 mm |
| Finish | Soft 9016 (Matt White) |
| Lead Time | 8 to 10 Weeks |
| Wall Brackets Included | Yes |
| Valves Included | No, sold separately |
Your new designer radiator will need valves. They will allow you to control the heat of your new radiator with ease. Need sleeving kits? Sleeving kits are tubes of brass that cover your radiator pipes and complete the luxury look.
Angled Valves
Pipework coming up from the floor + radiator connections on the side = Angled Valves. Suitable for any pipework which comes up from beneath, through your floor or up from your skirting board.
Straight Valves
Pipework coming up from the floor + radiator connections on the underneath side = Straight Valves. Best suited for pipework exiting from your floor or flexi-pipe up from your skirting board.
Corner Valves
Pipework coming up from the floor + radiator connections on the side = Angled Valves. Suitable for any pipework which comes up from beneath, through your floor or up from your skirting board.
Corner Valves
Pipework coming out from the wall + radiator connections on the underneath side = Corner Valves (recommended) or Angled Valves. You can also use Angled valves if you would like the valves to face forward.
