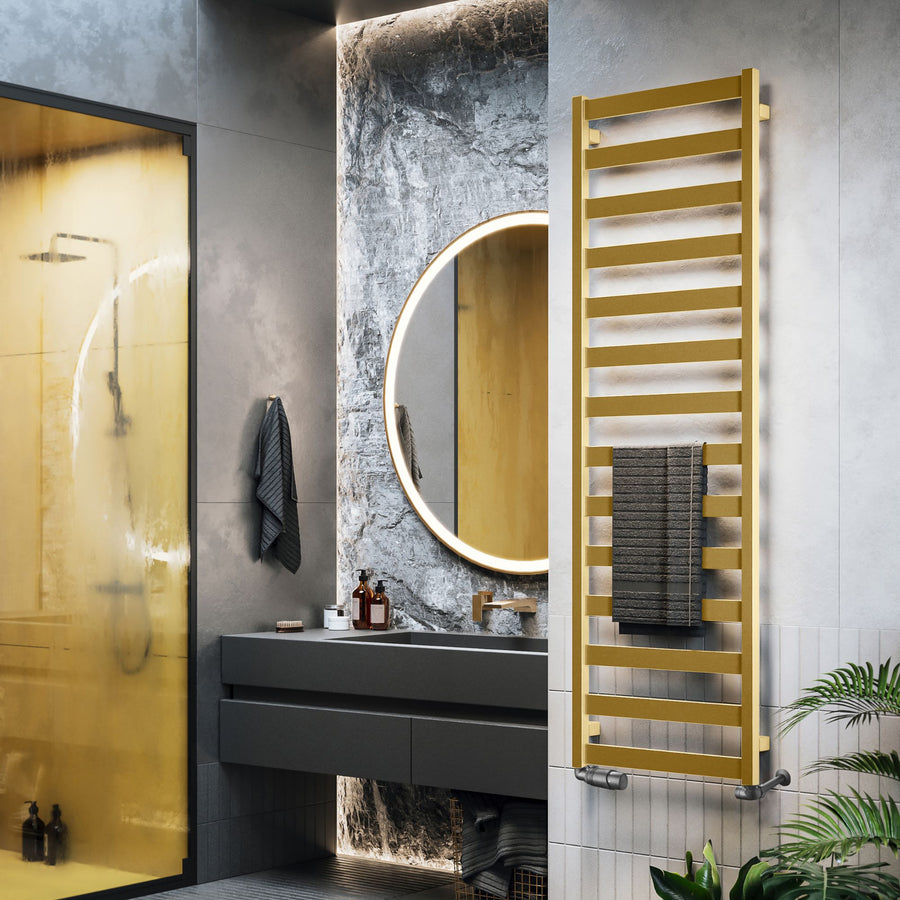

Terma Vivo Designer Heated Towel Rail

The Terma Vivo Designer Heated Towel Rail uses large flat bars suspended between rectangular uprights to create a simple, linear central heating design. The bars are evenly spaced so that each opening can be used for a towel. Its broad bar surfaces give the selected finish a clear visual presence across the front of the rail.

Vivo has a listed wall-to-face depth of 40 mm, providing a shallow profile when planning the radiator position. The 1390 × 300 mm version has narrow proportions, while the 1630 × 500 mm model provides a wider format. RAL 6028 (Matt) Green is smooth and matt. Denim Blue has a smooth silk finish, and Brass is described as smooth, matt and metallic.

For pipework coming through the wall, the manufacturer suggests suitable three-axis corner valves for a neat connection arrangement. Vivo also supports a manufacturer-specified dual-fuel setup using an additional Terma heating element and Terma Integrated Valve with Immersion Tube. The stated element recommendations are 400 W for the 1390 mm-high model and 600 W for the 1630 mm-high model. These electric ratings describe the added element and are separate from the central heating output of the radiator.

• Available Sizes: 1390 × 300 mm and 1630 × 500 mm
• Finish Options: RAL 6028 (Matt) Green, Denim Blue and Brass
• Fuel Source: Central Heating
• Material: Steel
• Wall-to-Face Depth: 40 mm
• BTU Output: 1215 to 2019 BTU at T50
• Watt Output: 356 to 592 W
• Recommended Element Ratings: 400 W for 1390 mm | 600 W for 1630 mm
• Guarantee: 8 Year Warranty
• Delivery Lead Time: 8 to 10 Weeks

Efficiency

The Terma Vivo Designer Heated Towel Rail provides central heating performance with listed outputs ranging from 1215 to 2019 BTU at T50, with watt figures from 356 to 592 W. Compare the exact size's output with a heat-loss calculation for your room and the operating temperatures of your heating system. The recommended element ratings are separate from the central heating output and should not be added to it.

Contact our sales office for further information: 01257 452 879

Installation

The Terma Vivo Designer Heated Towel Rail is designed for use with a Central Heating system. For pipework coming through the wall, the manufacturer suggests suitable three-axis corner valves for a neat connection arrangement. Check the available wall space as well as the heating requirement, including the 40 mm wall-to-face depth. Valves are not included and must be purchased separately.

For guidance on radiator valves, visit our Radiator Valve Guide.

Summary

The Terma Vivo Designer Heated Towel Rail combines large flat bars and rectangular uprights with efficient central heating performance. Available in RAL 6028 (Matt) Green, Denim Blue and Brass, it offers two sizes, a shallow 40 mm wall-to-face depth, practical towel-hanging spaces and an 8 Year Warranty.
