Terma Forte Single Panel Designer Radiator

34% Off

Please note: The displayed finish colour may vary slightly depending on screen settings and lighting conditions. Please refer to the product cutout image for the most accurate representation.

Free UK Delivery 10 Year Warranty Price Match

Terma Forte Single Panel Designer Radiator

Name: Terma Forte Single Panel Designer Radiator
Brand: Terma
SKU: TG10F180029-K916LP
Availability: InStock

The Terma Forte V10 is a single-panel steel radiator with 70 mm-wide flat bars and a stated 73 mm projection including fixings. The same model can be fitted with vertical or horizontal bars using the supplied universal bracket. Eight physical sizes are listed in White RAL 9016 and Metallic Grey. Valve connections and diverter setup depend on the installation orientation.

Price (Inc. VAT)

£169.00£259.20Save 34%

All prices include VAT

Free UK Delivery Included

In Stock: Ready to Ship

Available in 8 sizes and 2 finishes.

Size

Finish

Product Information
Pipe Centres (mm)	292 plus valves (if vertical bars) or 1800 plus valves (if horizontal bars)
Wall Centre (mm)	74
Overall Depth (mm)	73
BTUs (@ Δt50)	1780
Watts (@ Δt50)	522
Delivery Time Scale	8 to 10 Weeks

We Accept

VISA MC AMEX PayPal Klarna Shop Pay Apple Pay G Pay

Please Be Advised: Terma are currently experiencing low levels of stock and lengthy re-stocking periods. We recommend all customers contact our sales line for instant stock levels to avoid disappointment and unforeseen delays – call 01257 452 879 to check Terma stock!

The Terma Forte Single Panel Designer Radiator combines a single layer of flat steel profiles with the flexibility to install its bars vertically or horizontally. The V10 model uses 70 mm-wide bars mounted on round rear collectors, with narrow gaps forming a closely spaced, linear front. It is a central heating radiator with a shallow projection of 73 mm including fixings.

Construction: Single panel with flat steel profiles
Bar Width: 70 mm
Projection: 73 mm including fixings
Sizes: 1800 × 292 mm, 1800 × 366 mm, 1800 × 440 mm, 1800 × 588 mm, 600 × 588 mm, 600 × 810 mm, 600 × 1032 mm and 600 × 1254 mm
Finishes: White RAL 9016 and Metallic Grey
Orientation: Vertical or horizontal bars
Fuel: Central Heating
Heating Output: 1384 to 3560 BTU at T50 | 406 to 1044 W
Bracket: Universal bracket supplied
Warranty: 10 Year Warranty
Delivery: 8 to 10 Weeks
Valves: Not included

Efficiency

The Terma Forte Single Panel Designer Radiator provides central heating outputs from 1384 to 3560 BTU at T50, with watt outputs from 406 to 1044 W depending on the selected size. Compare the exact size's output with a heat-loss calculation for your room and the operating temperatures of your heating system.

Contact our sales office for further information: 01257 452 879

Installation

Forte is supplied with a universal bracket and instructions for both orientations. When the bars run vertically, valves connect at the sides and the brackets are visible from the side. When the bars run horizontally, valves connect underneath and the brackets are concealed. The pre-fitted internal diverter must be retained for vertical bars and removed for horizontal bars, as directed in the manufacturer instructions. Plan the pipework to match the chosen orientation before installation. Valves are not included and must be purchased separately.

Check our Radiator Valve Guide for help choosing suitable valves.

Summary

The Terma Forte Single Panel Designer Radiator combines a slim profile with flexible vertical or horizontal installation. Available in White RAL 9016 and Metallic Grey, it comes in eight size combinations and offers a 10 Year Warranty with an 8 to 10 Weeks delivery lead time.

Key Features

V10 single-panel central heating radiator
Single layer of flat steel profiles
70 mm-wide bars with narrow gaps
Vertical or horizontal bar orientation
Universal bracket and instructions supplied
73 mm projection including fixings
Pre-fitted internal flow diverter
Valves purchased separately

BTU, Watts and dimensions update live when you select a size above.

Height	1800 mm
Width	292 mm
BTU Output (ΔT50)	1780
Watt Output (ΔT50)	522
Pipe Centres	292 plus valves (if vertical bars) or 1800 plus valves (if horizontal bars) mm
Overall Depth	73 mm
Finish	White RAL 9016
Lead Time	8 to 10 Weeks
Wall Brackets Included	Yes
Valves Included	No, sold separately

Q1: What sizes and finishes are available for the Terma Forte V10?+

The Terma Forte V10 is available in 1800 × 292 mm, 1800 × 366 mm, 1800 × 440 mm, 1800 × 588 mm, 600 × 588 mm, 600 × 810 mm, 600 × 1032 mm and 600 × 1254 mm, stated as height × width. Finishes are White RAL 9016 and Metallic Grey.

Q2: Can the Terma Forte V10 be installed vertically or horizontally?+

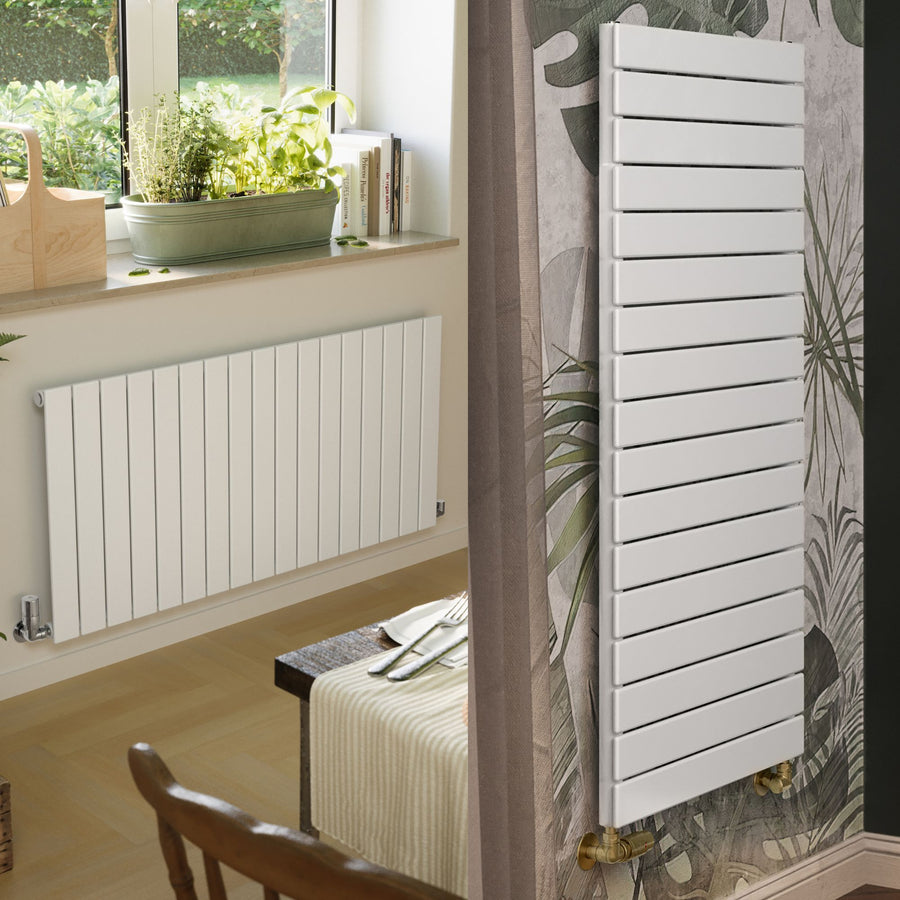

Yes. The same physical V10 model can be installed with its bars running vertically or horizontally using the supplied universal bracket. Rotating the radiator changes its installed proportions and the position of the connections.

Q3: Does the installation change when the Forte V10 is rotated?+

Yes. With vertical bars, the valves connect at the sides and the internal diverter is retained. With horizontal bars, the valves connect underneath and the diverter is removed, following the manufacturer's installation instructions.

Q4: Are the wall brackets supplied with the Terma Forte V10?+

Yes. The V10 is supplied with a universal bracket and installation instructions covering both vertical and horizontal orientations.

Q5: How is the Forte V10 different from the Forte V20?+

The Forte V10 uses one layer of 70 mm-wide flat steel profiles and has a listed projection of 73 mm including fixings. The Forte V20 uses two layers and has a listed projection of 93 mm including fixings. Their heat outputs also differ, so compare the exact size when choosing between them.

Q6: How far does the Terma Forte V10 project from the wall?+

The listed projection is 73 mm including fixings. Check the installation information and valve arrangement when planning the available wall space.

Q7: How much heat does the Terma Forte V10 produce?+

Listed central heating outputs range from 1384 to 3560 BTU at T50, equivalent to 406 to 1044 W, depending on the selected size. Compare the specific model's output with your room's heat-loss requirement and heating system temperatures.

Your new designer radiator will need valves. They will allow you to control the heat of your new radiator with ease. Need sleeving kits? Sleeving kits are tubes of brass that cover your radiator pipes and complete the luxury look.

Angled Valves

Pipework coming up from the floor + radiator connections on the side = Angled Valves. Suitable for any pipework which comes up from beneath, through your floor or up from your skirting board.

Straight Valves

Pipework coming up from the floor + radiator connections on the underneath side = Straight Valves. Best suited for pipework exiting from your floor or flexi-pipe up from your skirting board.

Corner Valves

Pipework coming up from the floor + radiator connections on the side = Angled Valves. Suitable for any pipework which comes up from beneath, through your floor or up from your skirting board.

Corner Valves

Pipework coming out from the wall + radiator connections on the underneath side = Corner Valves (recommended) or Angled Valves. You can also use Angled valves if you would like the valves to face forward.

Ensure you check with your plumber or installer to make sure you are using the correct valves. Need help? Contact our sales team today on 01257 452879
