Terma Forte Double Panel Designer Radiator

34% Off

Please note: The displayed finish colour may vary slightly depending on screen settings and lighting conditions. Please refer to the product cutout image for the most accurate representation.

Free UK Delivery 10 Year Warranty Price Match

Terma Forte Double Panel Designer Radiator

Name: Terma Forte Double Panel Designer Radiator
Brand: Terma
SKU: TG20F180029-K916LP
Availability: InStock

The Terma Forte V20 is a double-panel steel designer radiator for central heating. Its 70 mm-wide flat bars can run vertically or horizontally using the supplied universal bracket. Eight physical sizes are listed in White RAL 9016 and Metallic Grey, with a stated 93 mm projection including fixings. Pipe connections and internal diverter setup depend on the selected installation orientation.

Price (Inc. VAT)

£260.00£399.60Save 34%

All prices include VAT

Free UK Delivery Included

In Stock: Ready to Ship

Available in 8 sizes and 2 finishes.

Size

Finish

Product Information
Pipe Centres (mm)	292 plus valves (if vertical bars) or 1800 plus valves (if horizontal bars)
Wall Centre (mm)	74
Overall Depth (mm)	93
BTUs (@ Δt50)	2776
Watts (@ Δt50)	814
Delivery Time Scale	8 to 10 Weeks

We Accept

VISA MC AMEX PayPal Klarna Shop Pay Apple Pay G Pay

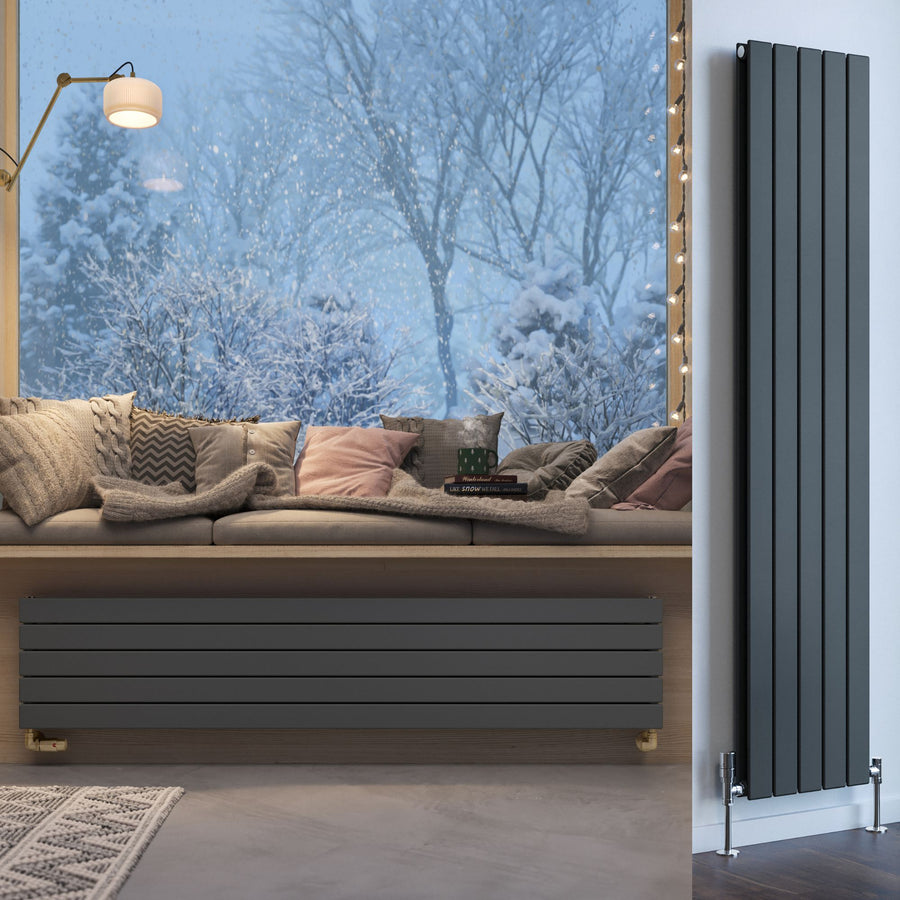

The Terma Forte Double Panel Designer Radiator uses two layers of flat steel profiles mounted on round rear collectors. Each front bar is 70 mm wide, with small gaps between the bars creating a closely spaced, linear surface. This V20 central heating radiator can be fitted with its bars running vertically or horizontally, allowing the same physical model to suit different wall layouts.

Construction: Double panel with two layers of flat steel profiles
Bar Width: 70 mm
Projection: 93 mm including fixings
Sizes: 1800 × 292 mm, 1800 × 366 mm, 1800 × 440 mm, 1800 × 588 mm, 600 × 588 mm, 600 × 810 mm, 600 × 1032 mm and 600 × 1254 mm
Finishes: White RAL 9016 and Metallic Grey
Orientation: Vertical or horizontal bars
Fuel: Central Heating
Heating Output: 2111 to 5555 BTU at T50 | 619 to 1629 W
Bracket: Universal bracket supplied
Warranty: 10 Year Warranty
Delivery: 8 to 10 Weeks
Valves: Not included

Efficiency

The Terma Forte Double Panel Designer Radiator provides central heating outputs from 2111 to 5555 BTU at T50, with watt outputs from 619 to 1629 W depending on the selected size. Compare the exact size's output with a heat-loss calculation for your room and the operating temperatures of your heating system.

Contact our sales office for further information: 01257 452 879

Installation

A universal bracket and full installation instructions are supplied for both orientations. With vertical bars, the valves connect at the sides and the brackets are visible from the side. With horizontal bars, the valves connect underneath and the brackets are concealed. The radiator includes an internal diverter to guide water flow. The manufacturer instructs the installer to retain it with vertical bars and remove it with horizontal bars, following the supplied instructions. Valves are not included and must be purchased separately.

Check our Radiator Valve Guide for help choosing suitable valves.

Summary

The Terma Forte Double Panel Designer Radiator combines a closely spaced linear profile with flexible vertical or horizontal installation. Available in White RAL 9016 and Metallic Grey, it is offered in eight size combinations with a 10 Year Warranty and an 8 to 10 Weeks delivery lead time.

Key Features

V20 double-panel central heating radiator
Two layers of flat steel profiles
70 mm-wide bars with small gaps
Vertical or horizontal bar orientation
Universal bracket and instructions supplied
93 mm projection including fixings
Internal diverter for controlled water flow
Valves purchased separately

BTU, Watts and dimensions update live when you select a size above.

Height	1800 mm
Width	292 mm
BTU Output (ΔT50)	2776
Watt Output (ΔT50)	814
Pipe Centres	292 plus valves (if vertical bars) or 1800 plus valves (if horizontal bars) mm
Overall Depth	93 mm
Finish	White RAL 9016
Lead Time	8 to 10 Weeks
Wall Brackets Included	Yes
Valves Included	No, sold separately

Q1: What sizes and finishes are available?+

Available sizes are 1800 × 292 mm, 1800 × 366 mm, 1800 × 440 mm, 1800 × 588 mm, 600 × 588 mm, 600 × 810 mm, 600 × 1032 mm and 600 × 1254 mm, stated as height × width. Available finishes are White RAL 9016 and Metallic Grey.

Q2: Can the same Forte be fitted vertically or horizontally?+

Yes. The same physical Forte V20 can be installed with its bars vertical or horizontal using the supplied universal bracket. Rotation changes the installed height and width.

Q3: Are wall brackets included?+

Yes. The manufacturer states that Forte is supplied with a universal bracket and instructions for both orientations.

Q4: Does the installation change when Forte is rotated?+

Yes. Vertical bars use side valve connections with the diverter retained. Horizontal bars use underside connections with the diverter removed, following the supplied installer instructions.

Q5: How do I choose the right heat output?+

Listed central heating outputs vary by size from 2111 to 5555 BTU at T50, with watt figures from 619 to 1629 W. Compare the exact size’s output with a heat-loss calculation for your room and the operating temperatures of your heating system. The T50 label identifies the stated central heating comparison condition. Actual output depends on the heating system temperatures, so use the selected model’s output and a room heat-loss calculation.

Q6: Are valves included?+

No. Valves are not included and must be purchased separately. Check our valve guide for help choosing suitable valves.

Q7: What are the lead time and warranty?+

The listed lead time is 8–10 weeks, with a 10-year warranty.

Your new designer radiator will need valves. They will allow you to control the heat of your new radiator with ease. Need sleeving kits? Sleeving kits are tubes of brass that cover your radiator pipes and complete the luxury look.

Angled Valves

Pipework coming up from the floor + radiator connections on the side = Angled Valves. Suitable for any pipework which comes up from beneath, through your floor or up from your skirting board.

Straight Valves

Pipework coming up from the floor + radiator connections on the underneath side = Straight Valves. Best suited for pipework exiting from your floor or flexi-pipe up from your skirting board.

Corner Valves

Pipework coming up from the floor + radiator connections on the side = Angled Valves. Suitable for any pipework which comes up from beneath, through your floor or up from your skirting board.

Corner Valves

Pipework coming out from the wall + radiator connections on the underneath side = Corner Valves (recommended) or Angled Valves. You can also use Angled valves if you would like the valves to face forward.

Ensure you check with your plumber or installer to make sure you are using the correct valves. Need help? Contact our sales team today on 01257 452879
