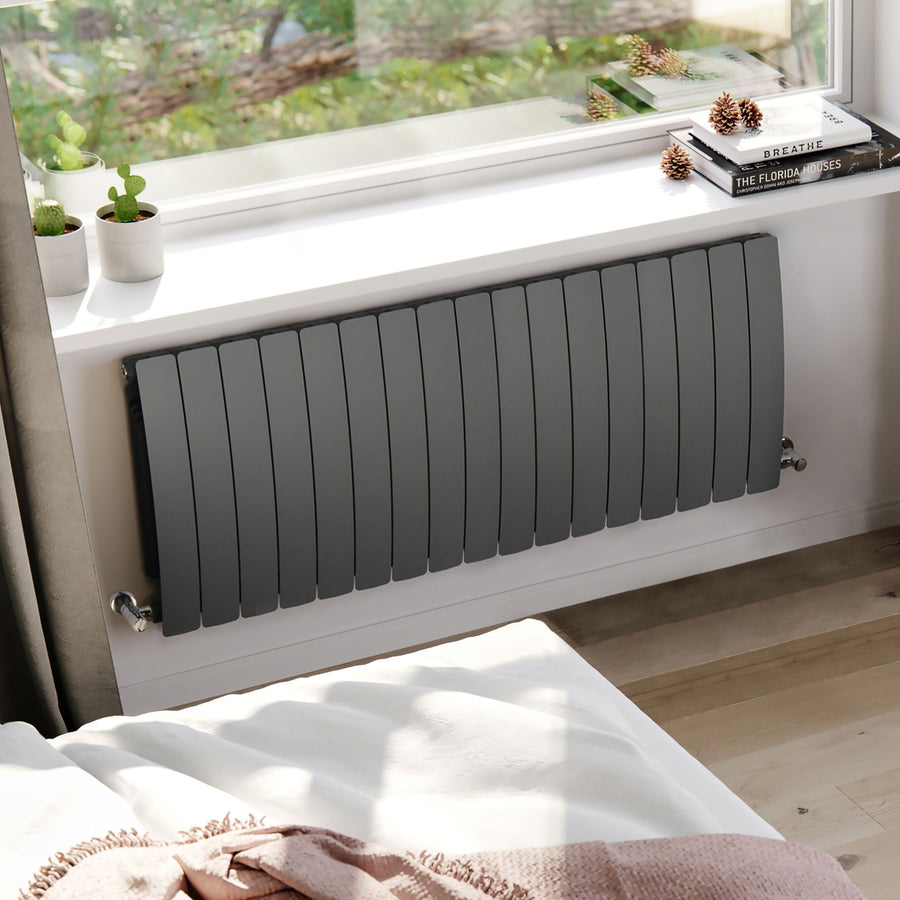

Terma Bergamo Horizontal Cast Aluminium Designer Radiator

Please Be Advised: Terma are currently experiencing low levels of stock and lengthy re-stocking periods. We recommend all customers contact our sales line for instant stock levels to avoid disappointment and unforeseen delays – call 01257 452 879 to check Terma stock!

The Terma Bergamo Horizontal Cast Aluminium Designer Radiator combines gently curving bars with integrated convection channels. Its 590 mm-high landscape format provides a low-profile shape for wall layouts such as an under-window position, where the measured clearance allows. This central heating radiator is manufactured from cast aluminium.

• Material: Cast Aluminium
• Sizes: 590 × 800 mm, 590 × 1040 mm and 590 × 1360 mm (height × width)
• Orientation: Horizontal
• Finishes: Matt White, Graphite Grey and Quartz Mocha
• Wall-to-Face Depth: 100 mm
• Pipe Centres: Radiator width plus valves
• Wall-to-Pipe-Centre: 47–55 mm
• Fuel: Central Heating
• Heating Output: 3842 to 6530 BTU at T50 | 1127 to 1915 W
• Warranty: 8 Year Warranty
• Delivery: 8 to 10 Weeks
• Valves: Not included

Efficiency

The Terma Bergamo Horizontal Cast Aluminium Designer Radiator provides central heating outputs from 3842 to 6530 BTU at T50, with watt outputs from 1127 to 1915 W depending on the selected size. Compare the exact model's output with a heat-loss calculation for your room and the operating temperatures of your heating system.

Contact our sales office for further information: 01257 452 879

Installation

This Bergamo must be installed horizontally. The manufacturer states that the landscape model will not function correctly if installed vertically, so it should not be rotated to fit a tall wall space. The listed wall-to-face depth is 100 mm, with wall-to-pipe-centre measurements ranging from 47 to 55 mm. Pipe centres are stated as the radiator width plus valves. Where pipes come through the wall, the manufacturer suggests suitable three-axis corner valves. Check the actual pipe position and selected valve dimensions before setting out the installation. Matt White has a smooth matt finish, while Graphite Grey and Quartz Mocha have matt, rough textures. Valves are not included and must be purchased separately.

Check our Radiator Valve Guide for help choosing suitable valves.

Summary

The Terma Bergamo Horizontal Cast Aluminium Designer Radiator combines curved bars and integrated convection channels in a contemporary landscape design. Available in three widths and three finishes, it offers central heating outputs from 3842 to 6530 BTU at T50, an 8 Year Warranty and an 8 to 10 Weeks delivery lead time.
