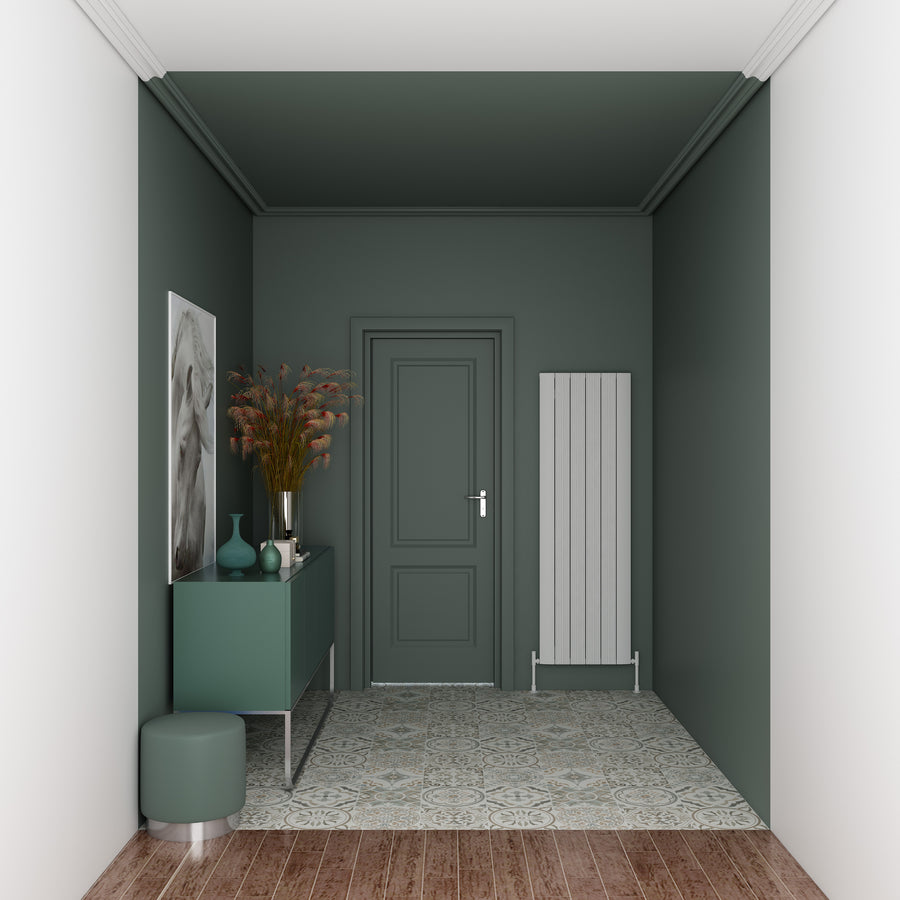

CARISA DUNE VERTICAL RADIATOR

Name: CARISA DUNE VERTICAL RADIATOR
Brand: Carisa
SKU: 10DNE06000470051010
Availability: InStock

Carisa Dune Vertical Radiator – a contemporary aluminium designer radiator with a distinctive front profile that adds interest to any wall. Made from aluminium in textured white and textured anthracite, available in 4 sizes from 600×470 mm to 1800×470 mm with heat outputs of 1,675–4,317 BTU (ΔT50).

Price (Inc. VAT)

£263.00£420.00Save 37%

All prices include VAT

Free UK Delivery Included

In Stock: Ready to Ship

Available in 4 sizes and 2 finishes.

Size

Finish

Product Information
Material	Aluminium
Pipe Centres (mm)	560
Wall Centre (mm)	30-50
Overall Depth (mm)	60-80
BTUs (@ Δt50)	1675
Watts (@ Δt50)	491
Delivery Time Scale	1 to 5 Working Days

We Accept

VISA MC AMEX PayPal Klarna Shop Pay Apple Pay G Pay

The Carisa Dune Vertical Radiator features a distinctive front profile that adds contemporary character to any interior. Crafted from high-quality aluminium and available in Textured White and Textured Anthracite finishes, it combines modern design with responsive heating performance for living rooms, kitchens, hallways and bedrooms.

Available Sizes: 600 mm x 470 mm | 1800 mm x 280 mm | 1800 mm x 375 mm | 1800 mm x 470 mm
Available Finishes: Textured White | Textured Anthracite
Material: Aluminium
Orientation: Vertical
Fuel Type: Central Heating
Heat Output: 1,675–4,317 BTU (491–1265 Watts) at ΔT50
Pipe Centres: 370–560 mm
Wall Projection: Approximately 60–80 mm
Warranty: 5 Year Manufacturer's Warranty
Delivery Lead Time: 1 to 5 Working Days

Efficiency

The Carisa Dune Vertical Radiator delivers heat outputs ranging from 1,675 BTU (491 Watts) to 4,317 BTU (1265 Watts) at ΔT50, depending on the size selected. Its aluminium construction and low water content support rapid warm-up and responsive heat delivery, helping your central heating system operate efficiently.

Installation

Designed for connection to a standard central heating system, the radiator comes with wall brackets and fixings for installation. Pipe centres range from 370–560 mm, and the wall projection is approximately 60–80 mm. Radiator valves are not included and must be purchased separately. For guidance, visit our Radiator Valve Guide. Professional installation is recommended to ensure safe and reliable operation.

If you have any further queries about this product, please call us on 01257 452 879.

Summary

The Carisa Dune Vertical Radiator combines distinctive contemporary styling, lightweight aluminium construction and efficient heating performance. Available in four sizes and Textured White or Textured Anthracite finishes, it offers a stylish heating solution for modern interiors, backed by a 5 Year Manufacturer's Warranty.

Key Features

Aluminium construction in textured white and textured anthracite
Distinctive designer front profile
Heat output 1,675–4,317 BTU (491–1265 W) at ΔT50
4 sizes: 600–1800 mm high × 280–470 mm wide
Approx. 60–80 mm from wall to face
370–560 mm pipe centres
Low water content for fast heat-up
Wall brackets and fixings supplied
5 year manufacturer guarantee
Fast UK delivery

BTU, Watts and dimensions update live when you select a size above.

Height	600 mm
Width	470 mm
BTU Output (ΔT50)	1675
Watt Output (ΔT50)	491
Pipe Centres	560 mm
Overall Depth	60-80 mm
Material	Aluminium
Finish	Textured White
Lead Time	1 to 5 Working Days
Wall Brackets Included	Yes
Valves Included	No, sold separately

Q1: What sizes are available in the Carisa Dune range?+

The Dune comes in four sizes: 600 × 470 mm, 1800 × 280 mm, 1800 × 375 mm and 1800 × 470 mm (height × width).

Q2: How does the heat output vary by size?+

Output ranges from 1,675 BTU (491 W) for the 600 × 470 mm radiator to 4,317 BTU (1,265 W) for the 1800 × 470 mm version, measured at ΔT50. The individual product listing gives the output for each size.

Q3: Can I choose a different finish?+

Yes. The Dune is available in textured white and textured anthracite.

Q4: What gives the Dune its distinctive appearance?+

The radiator is made from aluminium and features a shaped front profile that adds visual interest to the wall.

Q5: What are the pipe centres for each size?+

Pipe centres vary with the radiator width: 560 mm for the 600 × 470 mm size, 370 mm for the 1800 × 280 mm size, 465 mm for the 1800 × 375 mm size and 560 mm for the 1800 × 470 mm size.

Q6: How much clearance is needed behind the radiator?+

The wall-to-pipe-centre measurement is 30–50 mm, and the radiator projects 60–80 mm from the wall to its front face. Check these dimensions when planning the installation.

Q7: Are radiator valves supplied?+

No. Valves are sold separately and need to be purchased to suit your central heating connections.

Q8: How do I decide which size will heat my room?+

Compare the output of each size with your room's heating requirement, taking account of the room's dimensions, insulation and windows. Our BTU / Watts calculator can help you estimate the output needed.

Q9: How long does delivery take?+

In-stock models are usually dispatched within 1–5 working days for mainland UK delivery. Check the product listing for current availability and delivery details.

Your new designer radiator will need valves. They will allow you to control the heat of your new radiator with ease. Need sleeving kits? Sleeving kits are tubes of brass that cover your radiator pipes and complete the luxury look.

Angled Valves

Pipework coming up from the floor + radiator connections on the side = Angled Valves. Suitable for any pipework which comes up from beneath, through your floor or up from your skirting board.

Straight Valves

Pipework coming up from the floor + radiator connections on the underneath side = Straight Valves. Best suited for pipework exiting from your floor or flexi-pipe up from your skirting board.

Corner Valves

Pipework coming up from the floor + radiator connections on the side = Angled Valves. Suitable for any pipework which comes up from beneath, through your floor or up from your skirting board.

Corner Valves

Pipework coming out from the wall + radiator connections on the underneath side = Corner Valves (recommended) or Angled Valves. You can also use Angled valves if you would like the valves to face forward.

Ensure you check with your plumber or installer to make sure you are using the correct valves. Need help? Contact our sales team today on 01257 452879
